Industrial IGBT Water-cooling Plate, Aluminum High-performance Liquid Cooling Plate, 800mm Copper Cooling Plate
Détails sur le produit:
| Lieu d'origine: | Dongguan ， Guangdong, Chine |
| Nom de marque: | Uchi |
| Certification: | SMC |
| Numéro de modèle: | Plaque de refroidissement 80 |
Conditions de paiement et expédition:
| Quantité de commande min: | 100pcs |
|---|---|
| Prix: | Négociable |
| Conditions de paiement: | T/T, paypal, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 50000000pcs par mois |
|
Détail Infomation |
|||
| Matériel: | Alliage d'aluminium | Pression de travail: | Au moins 1 barre |
|---|---|---|---|
| Finition superficielle: | Finition usinée ou anodisation | Taille unique: | 5X28X2cm |
| Poids brut unique: | 2.000 kg | Garantie: | 1 an |
| Mettre en évidence: | Industrial IGBT water-cooling plate,Aluminum liquid cooling plate,800mm copper cooling plate |
||
Description de produit

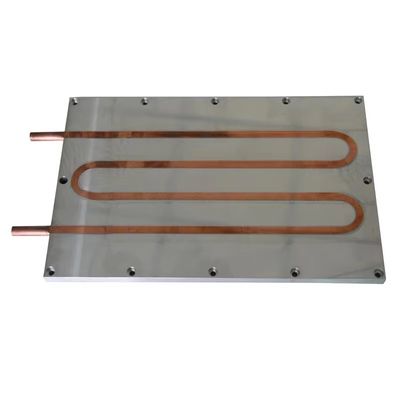

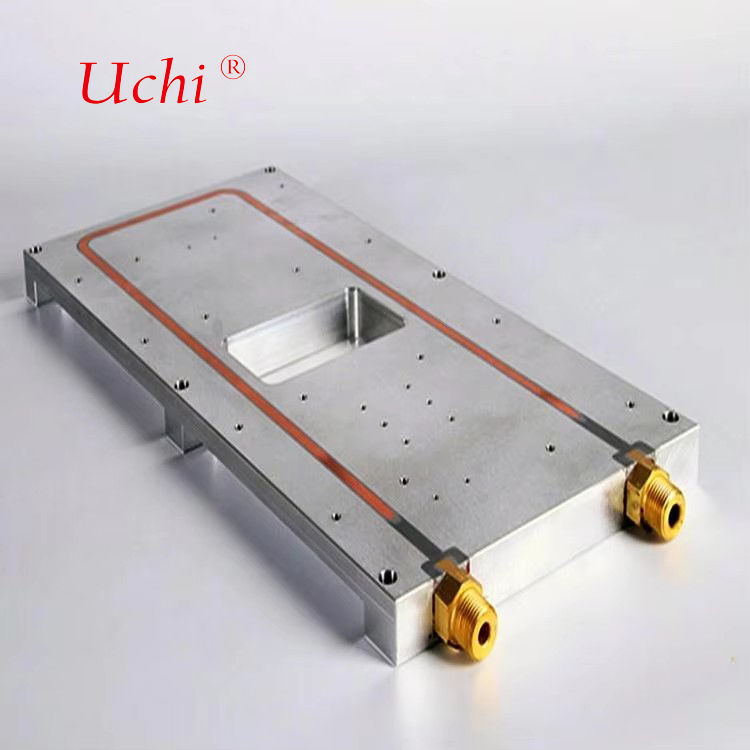

Industrial IGBT Water-cooling Plate
This high-performance liquid cold plate is made from aluminum and copper, ensuring efficient cooling for IGBT systems. With customizable sizes and surface treatments like anodizing and sandblasting, it caters to diverse industrial applications. The production process includes advanced techniques like friction stir welding and CNC machining, backed by over 20 years of professional manufacturing experience.
Product Specifications
| NO. | ITEM DESCRIPTION | CONTENT |
|---|---|---|
| 1 | Product Name | Water cooling plate; water cooling heat sink; aluminum cooled plate |
| 2 | Material | Aluminum, Aluminum+Copper tube |
| 3 | Detailed Size | As per customers' design |
| 4 | Sample Service | Samples available for prototypes within 1 week |
| 5 | Production Process | Aluminum Plate Cutting → Grooves Making → Embedding Tubes (Friction Stir Welding) → Epoxy adhesive filling → CNC Machining → Cleaning → Inspecting → Packing |
| 6 | Surface Treatment | Degreasing, (Black) Anodizing, Sand Blasting, Painting, Chromating and Laser marking |
| 7 | Reference Standard | GB/T 3190-2008, GB/T 14846-2008, ISO 2768 |
| 8 | Experience | More than 20 years professional manufacturing experience |
| 9 | Application | LED Lighting, Inverter, Welding Machine, Communication Device, Power Supply Equipment, Electronic Industry, Thermoelectric Coolers/Generator, IGBT/UPS Cooling Systems and other high power devices |
Manufacturing Processes
Vacuum Brazing Furnace
CNC Machining
Aluminum Extrusion
Skiving production line
Die casting production line
Aluminum Extrusion
Applications
- Lasers
- Medical equipment
- EV power battery pack cooling
- Power electronics
- Motor drive devices
- Microwave 5G transmission
- Renewable energy system
- IGBT and Power Semi-Conductor Systems
- Data Centres
- Industrial Power Applications
- Defence Systems
- Avionics
- Fuel Cells
- Traction Systems
Detailed view of cooling plate water channels
Production Capabilities
25 CNC machines, 10 stamping machines, 2 friction welding machines, 2 large thermal blowers, 4 wire cutting machines, 2 spark machines, 4 milling machines and 3 grinding machines.
Quality Assurance
1 Coordinate Measuring Machine, 1 projector instrument, 2 water high pressure testing machines, 4 thermal resistance testing machines, and 2 liquid leakage testing machines.
Customer Service
- Prompt response to all inquiries
- Competitive pricing with guaranteed quality
- Efficient production scheduling
- Optimal transportation solutions
- Comprehensive technical support
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a professional manufacturer of heat sinks and water cooling plates with extensive experience and a strong technical team, featuring automated and mechanized production.
Have you exported goods before and to which regions?
60% of our total production is exported to Japan, India, UK, Canada, USA, and Brazil.
How many employees do you have?
Approximately 100 employees across sales, purchasing, engineering, QA, warehouse, and production departments.
Can you provide samples if we agree with the design?
Yes, we provide samples for confirmation before mass production, along with technical drawings if required.
What packing methods do you use?
Customized packing with normal cartons and tight-proof fabric or wooden cartons for optimal protection during transportation.
Do you provide technical support for product issues?
All products are fully inspected before shipping. For any issues, we provide immediate technical solutions.
