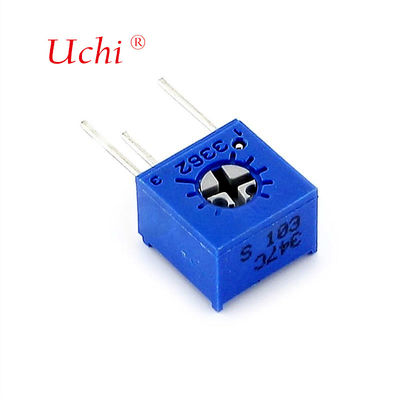

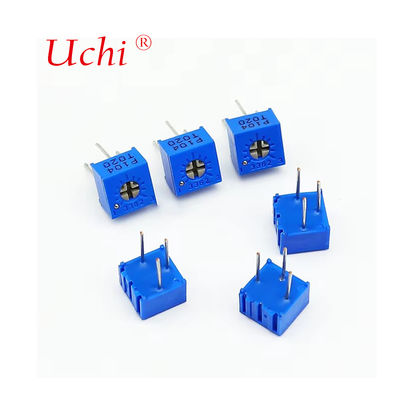

3362S Fine-tuning Precision Potentiometer 10K Metal Glass Glaze Precision Adjustable Resistor
Détails sur le produit:
| Lieu d'origine: | Dongguan ， Guangdong, Chine |
| Nom de marque: | Uchi |
| Certification: | SMC |
| Numéro de modèle: | 3326S |
Conditions de paiement et expédition:
| Quantité de commande min: | 100pcs |
|---|---|
| Prix: | Négociable |
| Conditions de paiement: | T/T, paypal, Western Union, MoneyGram |
| Capacité d'approvisionnement: | 50000000pcs par mois |
|
Détail Infomation |
|||
| Résistance: | 10Ω ~ 5mΩ | Tolérance à la résistance: | ± 10% |
|---|---|---|---|
| Puissance nominale: | 0.25 W (maximum 300 V) | Résistance terminale: | ≤ ± 1%R ou 2Ω |
| Voyage mécanique total: | 260° ± 10° | Plage de température: | -55°C à +125°C |
| Tension avec: | 500V (valeur de pointe en courant continu ou en courant alternatif) | Couple de départ: | ≤ 20 mN.m |
| Taille / dimension: | 5.1*7mm | ||
| Mettre en évidence: | 10K precision potentiometer adjustable resistor,metal glass glaze potentiometer,fine-tuning precision potentiometer 3362S |
||
Description de produit
3362S Fine-tuning Precision Potentiometer 10K Metal Glass Glaze Precision Adjustable Resistor
3006P 205 Metal Ceramic Fine-tuning Potentiometer, 2m Ohm With Knob, Precision Multi-turn Adjustable Potentiometer.

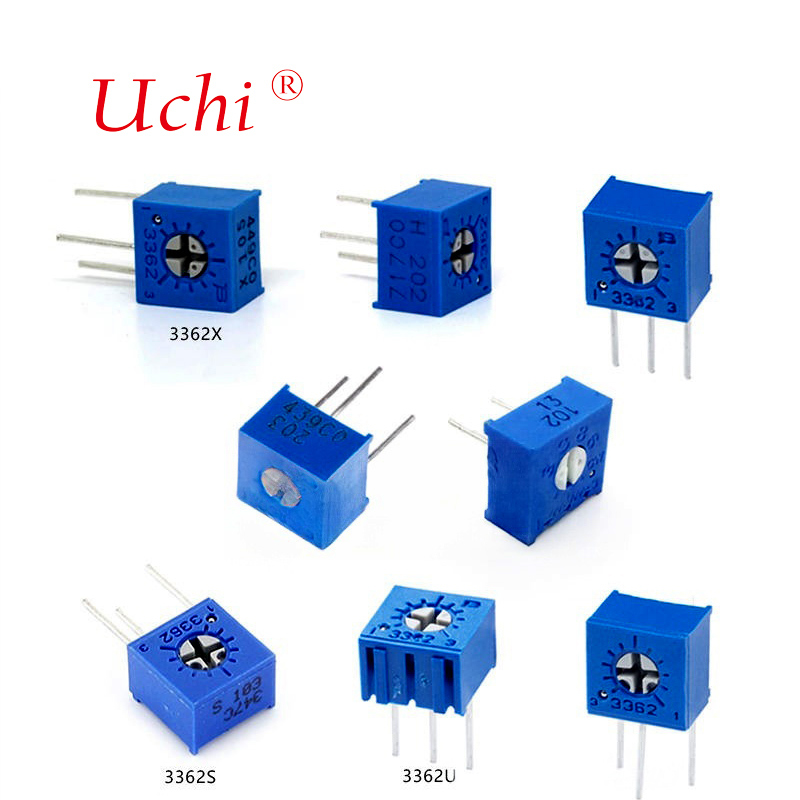

The 3362 series metal glass glaze preset Potentiometer is a single turn adjustable Potentiometer with micro package design, featuring a rotor optimized for machine automatic adjustment interfaces. Sealed construction enables operation in harsh environments and withstands immersion cleaning. Built-in board bracket and multi-wire brush effectively reduce contact resistance changes.
Product Features
- High accuracy and stability with glass glaze resistive material
- Compact dimensions with 0.25W rated power
- Effective stroke of 260° suitable for small electronic equipment
- High reliability and long lifespan for stable long-term operation
- Sealed construction for harsh environments and immersion cleaning
Specification Parameters
| Electrical Characteristics | |
|---|---|
| Range of nominal resistance | 10Ω~5MΩ |
| Resistance tolerance | ±10% |
| Terminal resistance | ≤±1%R or 2Ω |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω |
| Insulation resistance | ≥ 1GΩ (100V AC) |
| Withstand voltage | 500V (DC or AC peak value) |
| Effective electrical travel | ≥200° |
| Environment Characteristics | |
|---|---|
| Rated power | 0.25W (300V max) |
| Temperature range | -55°C~+125°C |
| TCR | ±250×10-6/°C |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS |
| Temperature variation (-55°C/30min, +125°C/30min, 5 cycles) | ΔR≤±2%R, ΔUab/Uac≤±2%R |
| Climate category (IEC68-2-2) | ΔR≤±(5%R+0.1Ω), Insulation Resistance ≥100MΩ |
| Electrical endurance (0.25W, 1000h) | ΔR≤±(5%R+0.1Ω), CRV≤±3%R or 5Ω |
| Mechanical endurance (200 cycles) | ΔR≤±(10%R+0.5Ω), CRV≤±3%R or 5Ω |
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤±(5%R+0.1Ω), Insulation Resistance≥100MΩ |
| Physical Characteristics | |
|---|---|
| Total mechanical travel | 260°±10° |
| Starting torque | ≤20mN.m |
| Stoper torque | ≥50mN.m |
| Standard package | 50 pcs /tube |
Product Size
Application Areas
The 3362 single-turn trimmer potentiometer is suitable for various electronic devices including audio amplifiers, filters, frequency meters, and other precision electronic equipment.
Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
- Advanced production equipment
- Professional R&D team
- OEM/ODM capabilities
- Strict quality control standards
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
- Express Mail Service
- DHL Express
- UPS
- FedEx
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
