MT010 Electric Lifting Desk Motor With Overload Protection Collision Detection
Détails sur le produit:
| Lieu d'origine: | Dongguan Chine |
| Nom de marque: | UCHI |
| Certification: | Completed |
| Numéro de modèle: | MT2 secteur privé |
Conditions de paiement et expédition:
| Quantité de commande min: | 1000pcs |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Standard |
| Délai de livraison: | 5-7 jours |
| Conditions de paiement: | T / T, Western Union |
| Capacité d'approvisionnement: | 5000 pièces de matériel |
|
Détail Infomation |
|||
| Puissance nominale: | 80 W maximum | Tension nominale: | Dc24v |
|---|---|---|---|
| Certificat: | 3C | Rotation: | 180 tr / min max |
| Hall: | Un seul/deux | Réduction du rapport: | 44 |
| Numéro de pôle magnétique: | Une paire | Taille du rotor: | 3025/3041 |
| Torsion: | 7n.m max | ||
| Mettre en évidence: | Collision Detection Lifting Desk Motor,MT010 Lifting Desk Motor,Overload Protection Lifting Desk Motor |
||
Description de produit

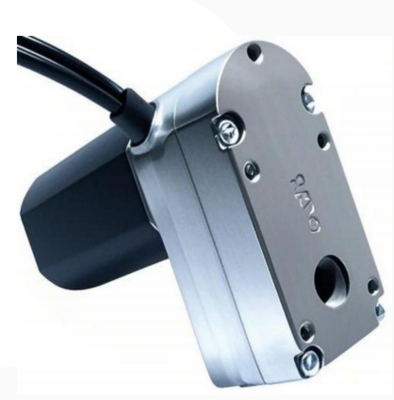

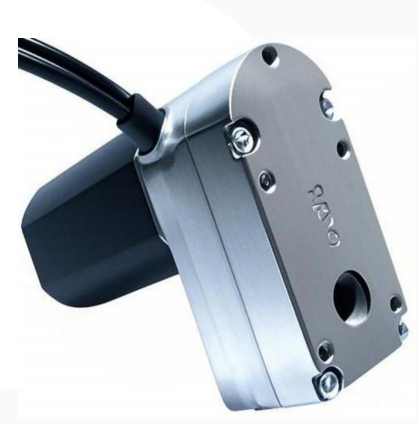

MT010 Electric Lifting Desk Motor With Overload Protection Collision Detection
| Voltage | DC24 | DC24 | DC24 | DC24 |
| Power | 80 W | 60W | 80W | 60W |
| Rotate Speed | 180 RPM | 180RPM | 90RPM | 90RPM |
| Torsion | 4N.M | 2N.M | 7N.M | 3N.M |
| Reduction on Ratio | 32.6 | 32.5 | 65 | 65 |
| Hall | Single/Dual | Single/Dual | Single/Dual | Single/Dual |
| Magnetic Pole Number | A pair | A pair | A pair | A pair |
| Rotor Size | 3041 | 3025 | 3041 | 3025 |
Product features:
1.Aluminum alloy die-casting housing, double worm gear and worm drive.Zinc Alloy Die-Casting Enclosure.
2.Customized wire length and sequence.
3.Horizontal installation inside the hidden table frame.
4.Optional brake at motor tail end.
Safety and Protection
-
Overheat Protection:The MT010 motor includes built-in overheat protection to prevent damage from excessive temperatures.
-
Overload Protection:It also features overload protection, which cuts off the power when the load exceeds the rated capacity, ensuring the motor's longevity.
Design and Compatibility
-
Dual Motor System:The MT010 often uses a dual motor system, with one motor on each side of the desk. This ensures even and synchronized lifting of the desk's legs, providing stability and reliability.
-
Versatile Applications:It is suitable for a wide range of desktop materials and sizes, making it a versatile choice for both home and office environments.
