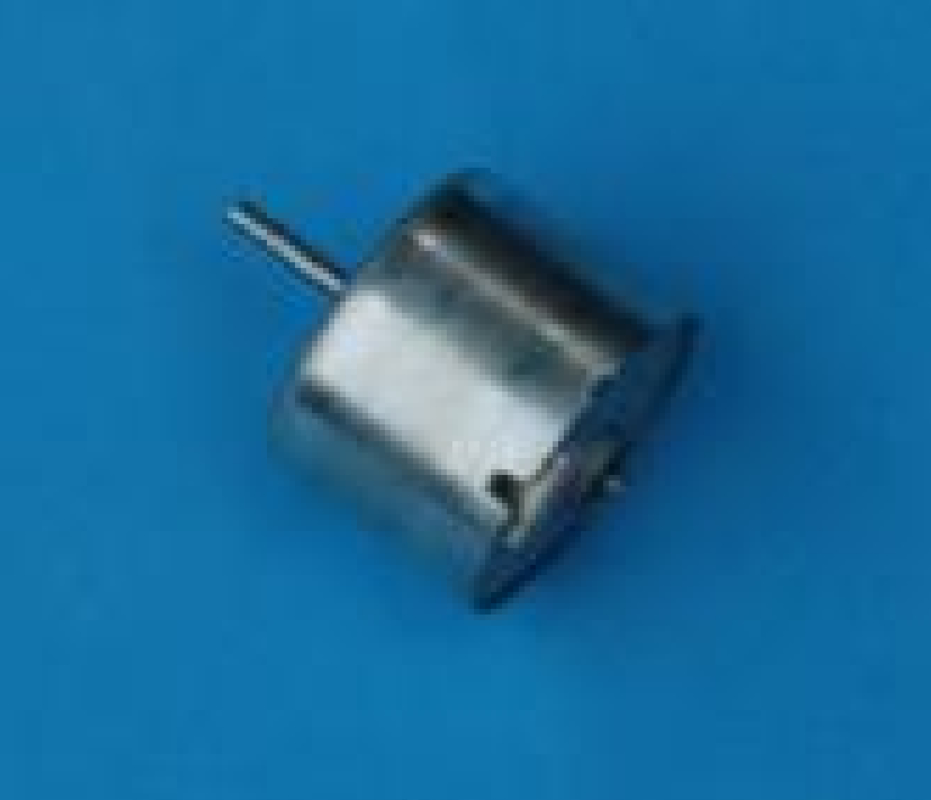

BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Détails sur le produit:
| Lieu d'origine: | Dongguan Chine |
| Nom de marque: | UCHI |
| Certification: | Completed |
| Numéro de modèle: | BLDC 2418 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1000pcs |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Standard |
| Délai de livraison: | 5-7 jours |
| Conditions de paiement: | T / T, Western Union |
| Capacité d'approvisionnement: | 5000 pièces de matériel |
|
Détail Infomation |
|||
| Gamme d'exploitation: | 9V ~ 16V / 19 ~ 26V | Nominal: | Constante 12v / 24v |
|---|---|---|---|
| Certificat: | 3C | Vitesse à vide r/min: | 11900 tr / min max |
| Current sans charge un: | 0,29 max | Vitesse à l'efficacité maximale: | 8891 tr / min max |
| Courant à l'efficacité maximale: | 0,82a max | EFF à l'efficacité maximale: | 61,4% max |
| Mettre en évidence: | Long Lifespan Brushless Motors,High Efficiency Brushless Motors,2418 Brushless Motors |
||
Description de produit
BLDC 2418 Brushless Motors High Efficiency and Long Lifespan For Electric Shaver
Features
1.High Efficiency and Long Lifespan: BLDC motors are known for their high efficiency, often reaching up to 97%. The BLDC 2418 motor also boasts a long lifespan, with some models capable of continuous operation for up to 15,000 hours.
2.Low Noise and Low EMI: These motors are designed to operate quietly, making them suitable for applications where noise control is important. They also produce low electromagnetic interference (EMI), which is crucial for sensitive electronic environments.

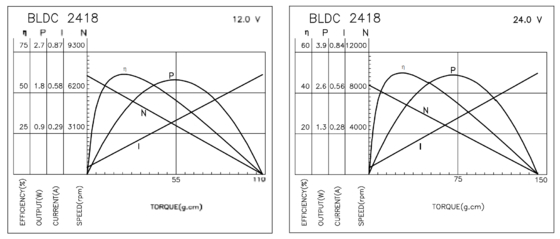

Brushless Motor Technical Data
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||
|
OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | TORQUE | |
| RPM | A | RPM | A | g.cm | % | g.cm | ||||
| BLDC-2418-1 | 9V~16V | 12V CONSTANT | 10250 | 0.29 | 7585 | 0.82 | 73.4 | 5.7 | 57.7 | 282.4 |
| BLDC-2418-2 | 9V~16V | 12V CONSTANT | 7500 | 0.07 | 8863 | 0.194 | 81.5 | 1.2 | 52.8 | 105.0 |
| BLDC-2418-3 | 19V~26V | 12V CONSTANT | 11900 | 0.19 | 8891 | 0.56 | 90.6 | 8.3 | 61.4 | 358.4 |
| BLDC-2418-4 | 19V~26V | 12V CONSTANT | 8700 | 0.04 | 6556 | 0.17 | 32.9 | 2.2 | 54.4 | 144.0 |
TYPICAL APPLICATION:
1.Electric Shaver
2.Home Application
