BLDC 3630 Brushless Motors For Industry Apparatus And Home Application
Détails sur le produit:
| Lieu d'origine: | Dongguan Chine |
| Nom de marque: | UCHI |
| Certification: | Completed |
| Numéro de modèle: | BLDC 3630 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1000pcs |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Standard |
| Délai de livraison: | 5-7 jours |
| Conditions de paiement: | T / T, Western Union |
| Capacité d'approvisionnement: | 5000 pièces de matériel |
|
Détail Infomation |
|||
| Gamme d'exploitation: | 9V ~ 14V / 19V ~ 26V | Nominal: | Constante 12v / 24v |
|---|---|---|---|
| Certificat: | 3C | Vitesse à vide r/min: | 11900 tr / min max |
| Current sans charge un: | 0,35 max | Vitesse à l'efficacité maximale: | 9065 tr / min max |
| Courant à l'efficacité maximale: | 1.08a max | EFF à l'efficacité maximale: | 61,0% max |
| Mettre en évidence: | Industry Apparatus Brushless Motor,3630 Brushless Motor |
||
Description de produit
BLDC 3630 Brushless Motors For Industry Apparatus And Personal Care
A BLDC 3630 brushless motor is a type of permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on an electronic controller to manage the flow of current through the motor windings. The "3630" designation typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "30" represents the length in millimeters.

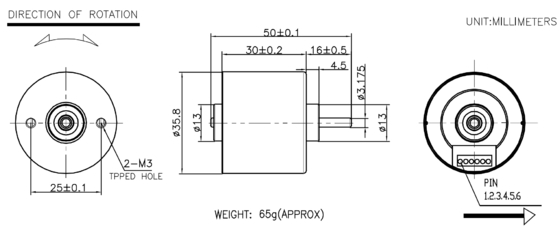

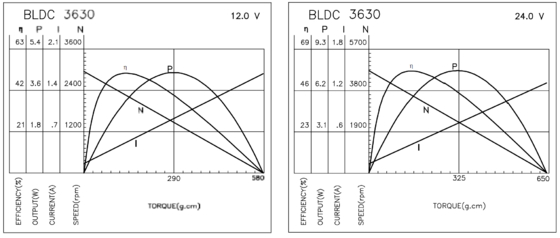

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Low Maintenance: BLDC motors eliminate the need for brushes and mechanical commutation, reducing energy losses and wear, resulting in higher efficiency and lower maintenance costs.
-
Compact Size and High Power Density: Despite its small size (36mm diameter and 30mm length), the BLDC 3630 motor can deliver significant power, making it suitable for applications where space is limited but high performance is required.
-
Wide Speed Range and Precise Control: These motors can operate over a wide range of speeds and can be precisely controlled using PWM (Pulse Width Modulation) for speed regulation
