BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care
Détails sur le produit:
| Lieu d'origine: | Dongguan Chine |
| Nom de marque: | UCHI |
| Certification: | Completed |
| Numéro de modèle: | BLDC 3626 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1000pcs |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Standard |
| Délai de livraison: | 5-7 jours |
| Conditions de paiement: | T / T, Western Union |
| Capacité d'approvisionnement: | 5000 pièces de matériel |
|
Détail Infomation |
|||
| Gamme d'exploitation: | 9V ~ 14V / 19V ~ 26V | Nominal: | Constante 12v / 24v |
|---|---|---|---|
| Certificat: | 3C | Vitesse à vide r/min: | 11900 tr / min max |
| Current sans charge un: | 0,35 max | Vitesse à l'efficacité maximale: | 9065 tr / min max |
| Courant à l'efficacité maximale: | 1.08a max | EFF à l'efficacité maximale: | 61,0% max |
| Mettre en évidence: | 3626 Brushless Motors,Brushless Motors For Industry Apparatus,Brushless Motors For Personal Care |
||
Description de produit

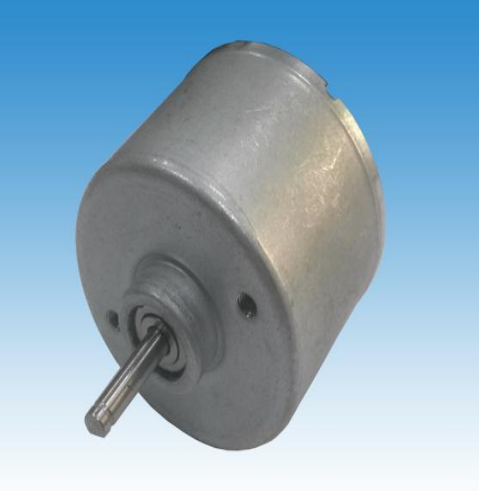

BLDC 3626 Brushless Motors For Industry Apparatus And Personal Care
A BLDC 3626 brushless motor is a permanent magnet synchronous motor (PMSM) that operates without brushes and a mechanical commutator. Instead, it relies on electronic controllers to manage the flow of current through the motor windings. The "3626" in its name typically refers to the motor's physical dimensions, where "36" represents the outer diameter in millimeters and "26" represents the length in millimeters. This specific size makes it suitable for a wide range of applications where compactness and high performance are required.

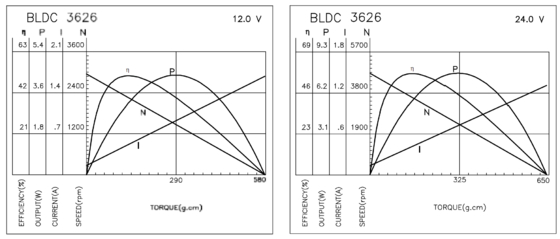

Brushless Motor Technical Data
TYPICAL APPLICATION:
1.Industry Apparatus
2.Personal Care
3.Home Application
Features
-
High Efficiency and Power Density: BLDC motors eliminate the need for brushes and mechanical commutators, reducing energy losses due to friction and electrical resistance. This results in higher overall efficiency compared to brushed DC motors.
-
Low Noise and Vibration: The design of BLDC motors minimizes mechanical noise. The lack of brushes also reduces electrical noise, making them suitable for applications where low noise levels are crucial.
